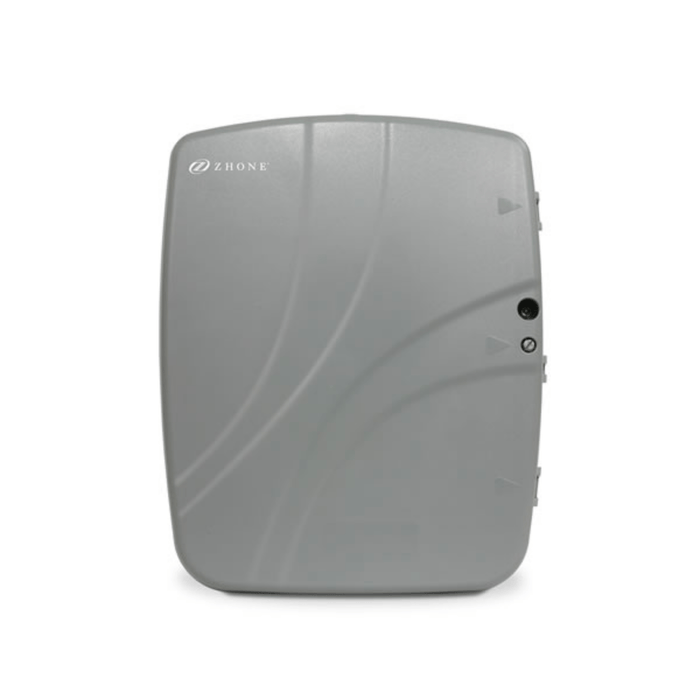

    DZS Outdoor ONT 2x Voice 2x GE w/Fiber Enclosure

    ZNID-GPON-4222A by DZS
    Sold out
    $760.95 - $760.95
    $760.95
    $760.95 - $760.95
    $760.95
    Extend Product Protection

    This product has a lead time of 4-7 business days


    DZS Outdoor ONT zNID is an intelligent NID supporting GPON termination with full-featured gateway functionality providing an ideal solution for FTTH deployments. Triple Play services - IPTV, POTS or VoIP, and High Speed InternetAccess (HSIA) - over existing coax and/or phone line make service offerings and installations flexible and easy.


    Product Features

    • Triple Play Services - IP Video, VoIP, High Speed Internet Access
    • No New Home Wiring - HPNA supported Simultaneously on Coax and phone line eliminates the need to run new wires
    • Two Step Easy Installation - Install Fiber enclosure without the need for electronics. Electronics can be installed after services are ordered
    • Remote Management - Web GUI, SNMP, and ZMS
    Specifications
    • Dimensions: 12.7 in. H x 9.9 in. W x 3.8 in. D
    • Weight: 3.5 lbs. (1.6 kg)
    • Power:
          12VDC
          Max Power 15W
          Power Options Include
      - Separate Indoor battery backup
      - Separate Outdoor battery backup
      - Standard 7-pin power and alarm connector
      - Optional 2-pin power and alarm module

    Interfaces

    • Uplink options:
          SC/APC connector for GPON
          OptiTap support
    • Common interfaces:
          2x FXS
          2x RJ45 10/100/1000Base-T
          6x RJ45 10/100/1000Base-T (4226 model only)
          1x Coax type F connector for HPNA
    • USB Craft Port
    • HPNA:
          First phone line
          Coax

    Protocol Support

    • DHCP Server, DHCP Client
          IP Routing and Bridging
          NAT
          Virtual LAN bridging (VLAN)
          Firewall and Security
    • QoS
          802.1P/Q prioritization
          Diffserv (RFC2474, RFC2475) marking and queuing
          Traffic shaping – bandwidth management and rate limiting
    • IPTV:
          IGMP Multicast
          IGMP Snooping

    Bandwidth/Distance

    • GPON interface with Class B+ optics (20km)
    • 1310nm
          Launch Power:
          Minimum 0.5 dBm
          Average 2 dBm
          Maximum +5 dBm
    • 1490nm
          Sensitivity -28 dBm

    Operating Requirements

    • Temperature: -40ºC to +60ºC
    • MTBF: greater than 100,000 hours
    Product Includes
    (1) GPON ONT Fiber Enclosure

    (1) Instructions Guide
