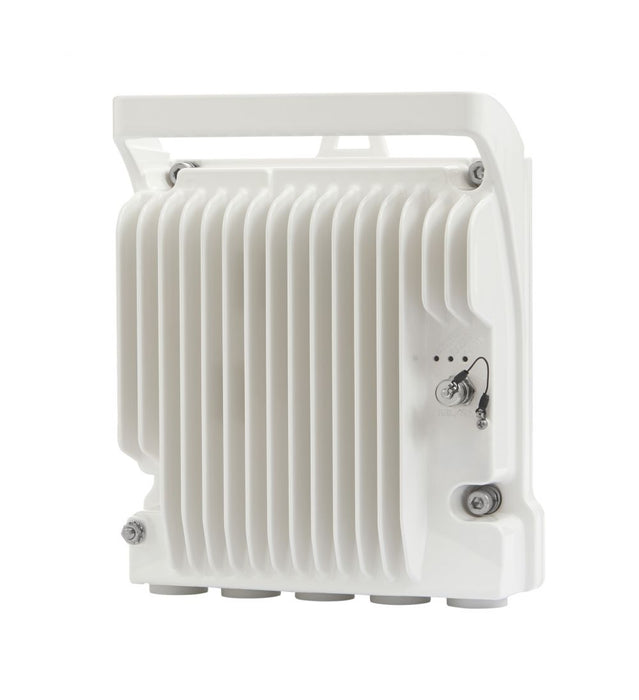

Cambium PTP 820S 11GHz Single-Core All-Outdoor Radio TR500 Ch4W9 Lo (10815-11095MHz)

PTP 820S Series - A Single Platform Serving All Radio Transport Requirements

Cambium PTP 820 is a backhaul platform solution for those who want the most advanced microwave tech they can get. It's a superior microwave solution, supporting licensed frequency bands ranging from 10815 to 11095 MHz (other models can range from 6 to 42 GHz). This point-to-point radio comprised of high-density notes and integrated radios, allowing this series flexibility in configuration options. You can set it up as all-indoor, split-mount, or all-outdoor if you so choose. Cambium technology combines with 2048QAM, Line of Site MiMO (LoS MIMO), and wider channel bandwidths ensures great throughput and spectral efficiency.

• Frequency Range: Wide 11GHz
• Configurations: 1+0, 1+1 HSB
• Radio Features: Protection: 1+1 HSB, High spectral utilization: QPSK to 2048 QAM w/ACM
• Transport Technology: All packet
• TDM Interface: None
• Modulation: QPSK to 2048 QAM w/ACM
• L2 Capacity: 605Mbps
• Capacity with Multi-Layer Compression: 833Mbps
• Configuration: 1+0, 1+1 HSB
• LOS MiMO: No
• XPIC: No
• Management Interface: 1 x 10/100 Base-T
• External Alarm: None
• Environment: -27.4 to 131deg F (-33 to 55deg C)
• Power Input: -48VDC
• PoE Injector Power Input: -48VDC or +24VDC
• Power Consumption: 32W
