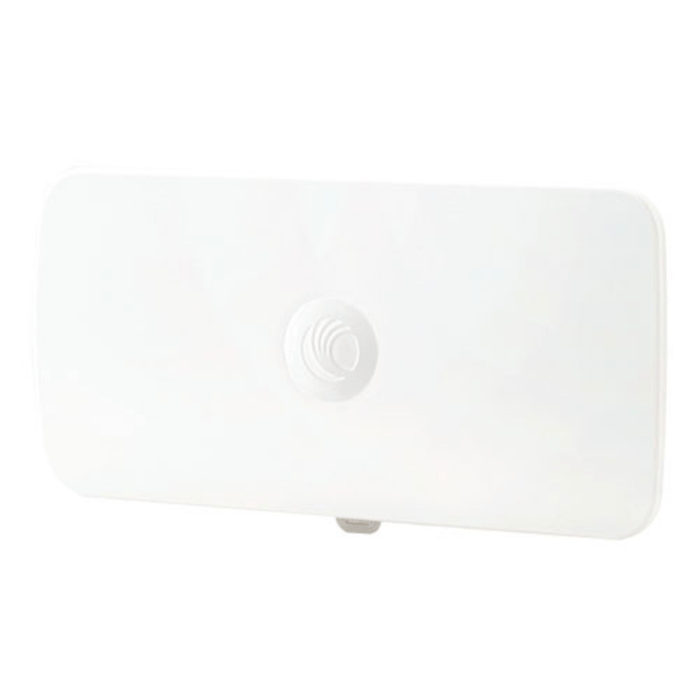

Cambium ePMP 5GHz Force 300-16 Radio (FCC) (US Cord)

Cambium ePMP Force 300-16 is designed to operate in high interference environments and provides superior throughput of over 500 Mbps of real user data. The ePMP Force 300-16 supports channel size configuration from 20MHz up to 80MHz and modulates up to 256 QAM. The Force 300-16 supports a local Wi-Fi connection to allow easy installation, configuration, and monitoring from any Wi-Fi enabled device. With a horizontal orientation mount providing a 15 degree beam width and 16dBi gain, the F300-16 offers a compelling, compact subscriber or point to point solution resilient to interference.

Product Features:

• The ePMP Force 300-16 supports real time spectrum monitoring with out degradation in throughput
• Configurable modes of operation ensure robust adaptivity to both symmetrical and asymmetrical traffic while providing high performance and round-trip latency as low as 3-5 ms
• QoS management offers an outstanding quality for triple play services – VoIP, video, and data – and provides three levels of traffic priority
• With a horizontal orientation mount providing a 15 degree beamwidth and 16dBi gain, the F300-16 offers a compelling, compact unbscriber or point to point solution resilient to interference.
• This platform is for the user base that wants a smaller on premises footprint while enabling high gain.
• Install is a breeze with the easy to install mount, capable of pole and wall mounting

• Channel Spacing Configurable in 5 MHz increments
• Frequency Range Wide Band Operation 4910 - 5970 MHz (Note: Allowable frequencies and bands are dictated by individual country regulations.)
• Channel Width 20 | 40 | 80 MHz
• MAC (Media Access Control) Layer Cambium
• Proprietary Physical Layer 2x2 MIMO/OFDM
• Ethernet Interfaced 10/100/1000 BaseT, Compatible with Cambium PoE & Standard PoE pinouts
• Protocols Used IPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH
• Network Management IPv4/IPv6, HTTPs, SNMPv2c, SSH, Cambium Networks CnMaestro
• VLAN 802.1Q with 802.1p priority
• ARQ Yes
• Nominal Receive Sensitivity (w/FEC) @20 MHz Channel MCS0 = -89 dBm to MCS8 (256 QAM-3/4) = -66 dBm (per chain)
• Nominal Receive Sensitivity (w/FEC) @40 MHz Channel MCS0 = -87 dBm to MCS9 (256 QAM-5/6) = -64 dBm (per chain)
• Nominal Receive Sensitivity (w/FEC) @80 MHz Channel MCS0 = -84 dBm to MCS9 (256 QAM-5/6) = -59 dBm (per chain)
• Modulation Levels (Adaptive) MCS0(BPSK) to MCS9 (256 QAM-5/6)
• Transmit Power Range 0 to +29 dBm (combined, to regional EIRP limit) (1 dB interval)
• Surge Suppression 1 Joule Integrated (C000000L065A - 30V Gigabit surge suppressor is recommended for optimum protection)
• Environmental IP55
• Temperature -30°C to +60°C (-22°F to +140°F)
• Weight 0.50 kg (1.1 lb) (includes mounting bracket)
• Wind Survival 180 km/hour (112 mi/hour)
• Dimensions (Dia x Depth) 12.4 x 25.1 x 11.9 cm (4.9 x 9.9 x 4.7 in) – with mounting bracket attached
• Pole Diameter Range 1 – 1.6 in (2.5 – 4.1 cm) with included clamp; up to 2.25 in (5.7 cm) with larger clamp
• Power Consumption 12 Watts
• Input Voltage 30 Volts
• Encryption 128-bit AES (CCMP mode)
• FCCID Z8H-89FT0016**
• Industry Canada Cert 109W-0016**
• CE EN 301 893 V2.1.1 (5.4 GHz), EN 302 502 V2.1.1 (5.8 GHz)**
• Frequency Range 4.9 – 5.970 MHz
• Antenna Type Panel
• Peak Gain 16 dBi
• 3dB Beamwidth-Azimuth 15 degrees
• 3dB Beamwidth-Elevation 30 degrees

• (1) ePMP Force 300-16 Radio(1) User Manual
• (1) Power supply 1000/100 Base-TX LAN injector
• (1) US line cord
