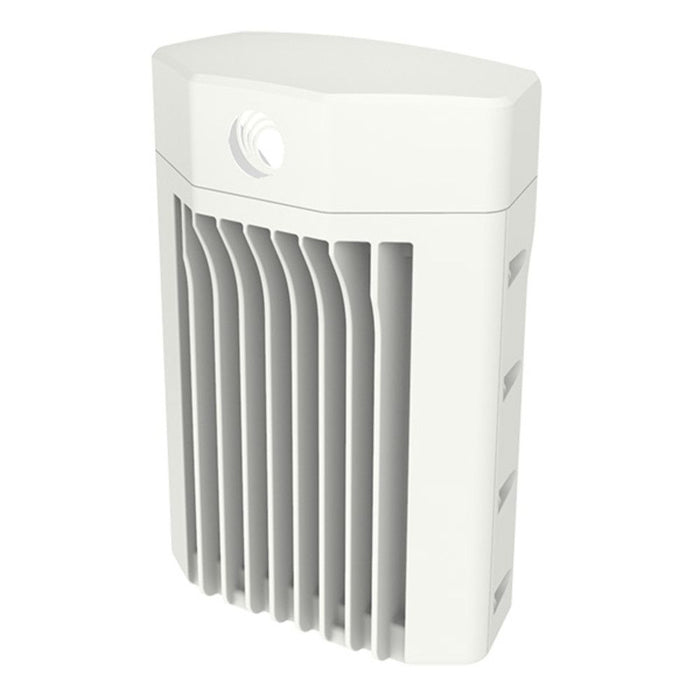

Cambium cnWave V5000 802.11ay 60GHz Distribution Node

Cambium Networks’ 60 GHz cnWave solution provides easy, fast and cost-effective wireless gigabit connectivity for edge access and/ or high-capacity backhaul for edge access solutions at a significantly lower TCO than fiber infrastructure. Service providers and enterprises now have access to gigabit for business and residential connectivity, backhaul for Wi-Fi access or LTE/5G small cell. Certified for Facebook Terragraph, cnWave mesh solutions are highly efficient at handling high-density deployments in cities and suburban areas.

V5000 is featured with two sectors covering up to 280 degrees with beamforming. A single V5000 can connect up to four other distribution nodes or up to 30 client nodes. V5000 can be used for PTP, PMP and mesh configurations.

Client Node Model:

• Maximum throughput in DL or UL: V1000: 1 Gbps, V3000: 3.8 Gbps
• Maximum EIRP: V1000: 38 dBm, V3000: 61 dBm

• Supports 57 to 66 GHz
• Dual-sector with 280° coverage
• Up to 15.2 Gbps (7.6 Gbps UL and 7.6 Gbps DL) with channel bonding
• TDMA/TDD channel access and Network Synchronization
• 802.11ay technology with Terragraph certification
• Environmental: IP66/67
• Temperature: -40°C to 60°C (-40° to 140°)
• Mean Time Between Failure: > 40 years
• Wind Survival: 200 km/h (124 mph)

• Frequency Range: 57 to 66 GHz in a single SKU
• Channel Width: 2.16 GHz
• Carrier Bonding: Up to 2 adjacent channels
• Mode of Operation: PMP or Mesh, PTP
• Channel Access: TDMA/ TDD
• Ethernet Interface: (1) 100/1000/10G BaseT with PoE In, (1) 100/1000 BaseT with 802.3at PoE Out, (1) SFP+
• Protocol Supported: IPv4, IPv6
• Network Management: cnMaestro, HTTP, HTTPS, SNMP v2c & v3
• MTU: 4,000 bytes
• Encryption: 128-bit AES
• Firmware Security: Signed Firmware Images
• Modulation & Coding Schemes: MCS-0 (BPSK) to MCS-12 (16-QAM)
• Latency: < 1 ms
• Max. EIRP: 38 dBm
• Gain: 22.5 dBi
• Type: Integrated
• Beamforming Scan Range: ±140° azimuth, ± 20° elevation
• Beam Width: 12°
• Type: Passive PoE (42-57 V)
• Power Consumption: 60 W with AUX PoE Out in use, 35 W without AUX PoE Out in use

(1) US Plug
