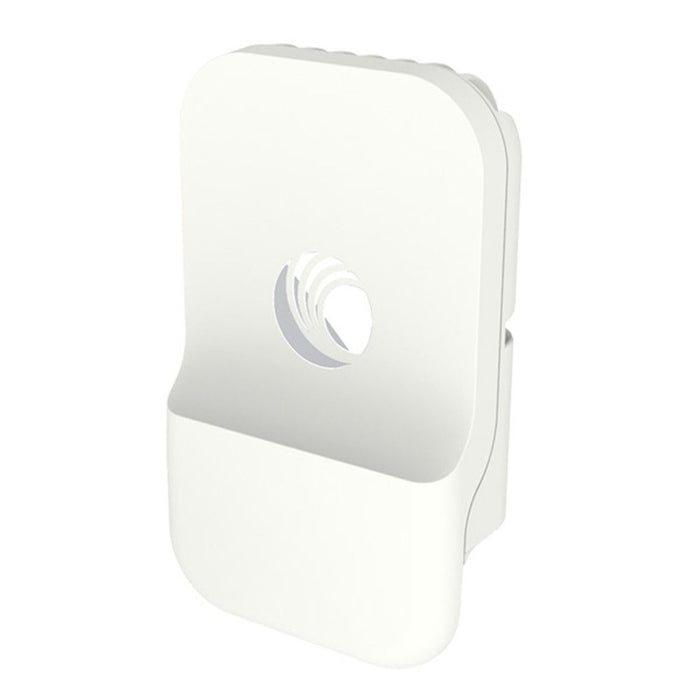

Cambium cnWave V1000 802.11ay 60GHz Client Node with US Cord
Cambium Networks’ 60 GHz cnWave solution provides easy, fast and cost-effective wireless gigabit connectivity for edge access and/or high-capacity backhaul for edge access solutions at a significantly lower TCO than fiber infrastructure. Service providers and enterprises now have access to gigabit for business and residential connectivity, backhaul for Wi-Fi access or LTE/5G small cell. Certified for Facebook Terragraph, cnWave mesh solutions are highly efficient at handling high-density deployments in cities and suburban areas. V1000 is featured with wide-range, 80° beamforming for easy installation. Powered by 802.3af PoE, V1000 supports up to 2 Gbps with 1 Gbps in the uplink direction and 1 Gbps in the downlink direction.
Product Features:
- Supports 57 to 66 GHz
- Up to 2 Gbps (1 Gbps UL and 1 Gbps DL)
- Auto-beamforming, 80° horizontal and 40° vertical
- TDMA channel access and TDD Network Synchronization
- 802.11ay standard technology with Terragraph certification
- Environmental: IP66/67
- Temperature: -40°C to 60°C (-40° to 140°)
- Mean Time Between Failure: > 40 years
- Wind Survival: 200 km/h (124 mph)
- Frequency Range: 57 to 66 GHz in a single SKU
- Channel Width: 2.16 GHz
- Carrier Bonding: Up to 2 adjacent channels
- Mode of Operation: PMP or Mesh
- Channel Access: TDMA/ TDD
- Ethernet Interface: (1) 100/1000 BaseT with PoE In
- Protocol Supported: IPv4, IPv6
- Network Management: cnMaestro, HTTP, HTTPS, SNMP v2c & v3
- MTU: 4,000 bytes
- Encryption: 128-bit AES
- Firmware Security: Signed Firmware Images
- Modulation & Coding Schemes: MCS-0 (BPSK) to MCS-12 (16-QAM)
- Latency: < 1 ms
- Max. EIRP: 38 dBm
- Gain: 22.5 dBi
- Type: Integrated
- Beamforming Scan Range: ±40° azimuth, ± 20° elevation
- Beam Width: 12°
- Type: 802.3af PoE
- Power Consumption: 10W
(1) V1000 Client Node
(1) US Plug
