    Cambium cnMatrix EX2028-P, Intelligent Ethernet PoE Switch, 24 1G and 4 SFP+ fiber ports - US Power Cord - Cambium Networks - (Dev) Baltic Networks

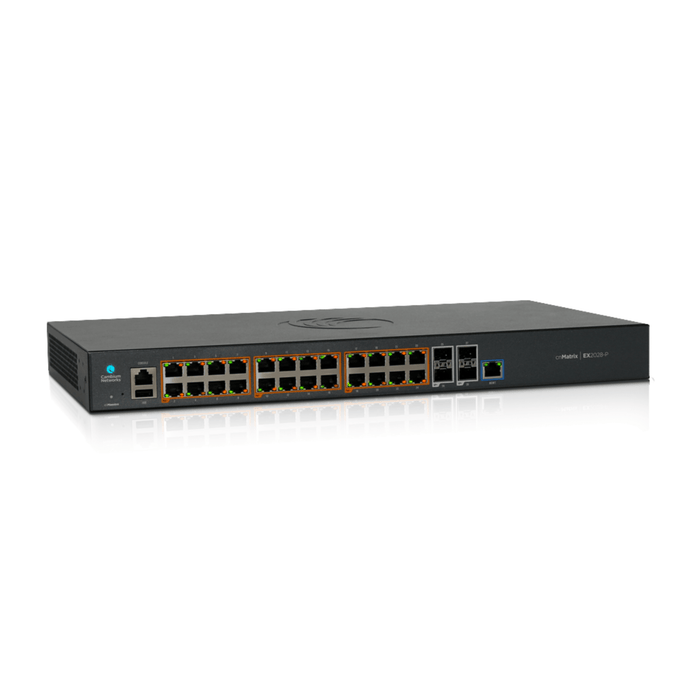

    Cambium cnMatrix EX2028-P, Intelligent Ethernet PoE Switch, 24 1G and 4 SFP+ fiber ports - US Power Cord

    MX-EX2028PxA-U by Cambium Networks
    Cambium Networks MX-EX2028PxA-U Datasheet
    Sold out
    $1,749.38 - $1,749.38
    $1,749.38
    $1,749.38 - $1,749.38
    $1,749.38
    Extend Product Protection

    The cnMatrix series of fully managed switches delivers full Layer 2 and Layer 3 capabilities with enhanced access security. cnMatrix switches deliver power savings with several models offering fanless operation. The switch models deliver flexibility with 4–10 Gbps (SFP+) uplinks on the 28 port models, while offering 2 – 1 Gbps (SFP) uplink ports on the 10 port models.


    Product Features:

    • Energy Efficient Gigabit
    • Layer 3 (OSPF and RIP)
    • Flexible Power over Ethernet (PoE) options
    • Multiple port density options


    Product Specifications:
    • Throughput: 128Gbps
    • Non-Blocking: Yes
    • PoE Enabled Ports: 24
    • PoE Power Budget Units (watts): 400
    • 10/100/1000 Ports: 24
    • Uplink Ports: 4 SFP+
    • Serial Console: Yes
    • USB: Yes
    • OOB Port: Yes
    • Rack mount kit: Yes
    • Internal Fans: 2
    • Maximum Routes (Static): 64
    • Dynamic Routing: 512
    • LACP/Trunking: 8 LAGs / 8 Links per 9216
    • QoS Priority Queues: 8
    • Maximum IGMP Multicast groups: 256
    • Max PVRST: 32


    Product Includes:


    (1) cnMatrix Switch (EX2028P)

    (1) Rack Mount

    (1) User Manual
