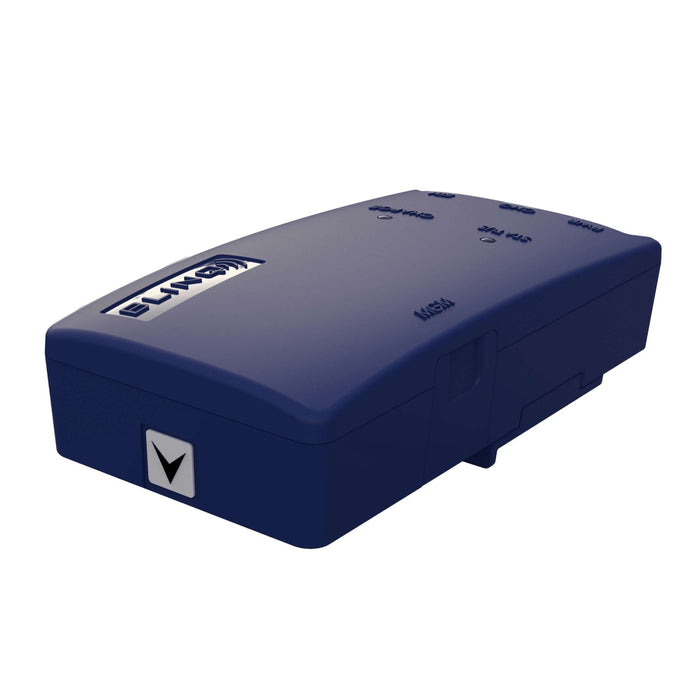

    BLiNQ Networks Pointlinq Link performance optimization and alignment tool

    Pointlinq-k by BLiNQ Networks
    Sold out
    $1,000.00 - $1,000.00
    $1,000.00
    $1,000.00 - $1,000.00
    $1,000.00
    Extend Product Protection

    The BLiNQ PointLiNQ includes 20 PointLiNQ tokens featuring CBSD CPE registration, link performance measurement, eNB list and CPE link performance reports storage.


    Product Features:
    • CPE Installation Optimization for Band 42, 43 and 48
    • Performs Survey Prior to Installation
    • Generates List of Available ENBs from Server
    • Performance Predictions: The app computes certain performance predictions that will enable a fast and error free process prior to CPE connectivity
    • Real Time Connection Statistics: Scans and collects KPI values at each position
    • CPE CBSD Registration: Performs single step CBSD registration right from the app
    • Iperf Speed Test: Real performance in up to 30 grid patterns
    • Generates Final Report: Generates and submits final report when installation is completed


    Product Specifications:
    • Communications: 1T1R Wi-Fi 802.11 b/g/n (2.4G)
    • Security/Encryption: AES128/256-CBC
    • Authentication: WEP64/128, AES, WPA, WPA2, WAPI
    • Connectors: 10/100BASE-T Ethernet with 802.3AF POE PSE (15.4 W)
    • Console: USB Virtual Serial Ports (VCP)
    • Azimuth: 28° + CPE Azimuth Antenna BW**
    • Elevation: 25° + CPE Elevation Antenna BW**
    • Operational Temperature: -20 °C to 60 °C (-4 °F to 140 °F)
    • Charging Temperature: 10 °C to 45 °C (50 °F to 113 °F)
    • Storage Temperature: -20 °C to 60 °C (-4 °F to 140 °F)


    Product Includes:


    (1) PointLiNQ Link performance optimization and alignment tool
    (20) PointLiNQ tokens
