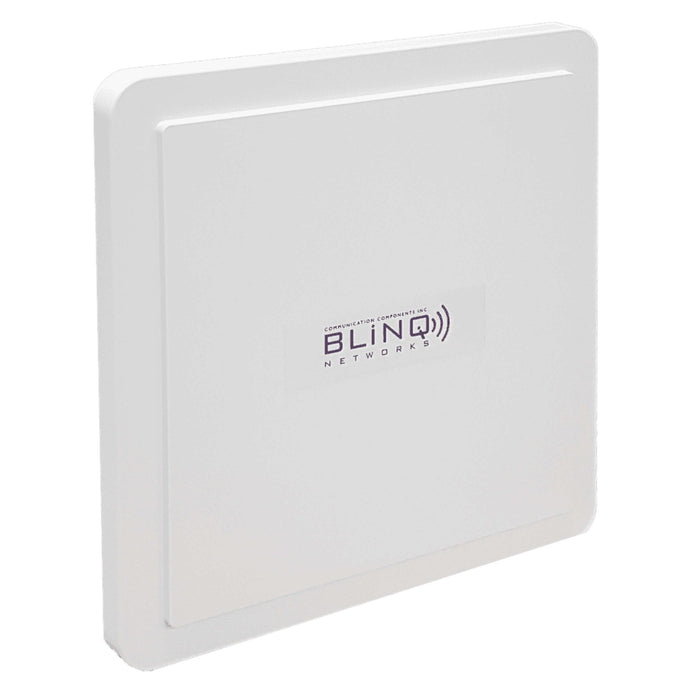

    BLiNQ Networks FW CAT12 Standard Gain CPE with mounting bracket

    FWC-133-3550 by BLiNQ Networks
    Sold out
    $435.00 - $435.00
    $435.00
    $435.00 - $435.00
    $435.00
    Extend Product Protection

    Product Specifications:

    • Frequency Band: TDD LTE Bands 42, 43, 48, 46
    • Peak Gain @ 3.5GHz: 12dBi
    • Peak Gain @ 5GHz: 16dBi
    • Peak Throughput – Cat 12/13 (Config 2-7): DL 440Mbps; UL 30Mbps
    • Peak Throughput – Cat 15 (Config 2-7): DL 500Mbps; UL 30Mbps
    • DL Carrier Aggregation Bandwidth: 80MHz max. (20MHz + 20MHz non-congruous up to 40MHz), (40MHz (congruous) + 40MHz (congruous) up to 80MHz)
    • UL Carrier Aggregation Bandwidth: 40MHz max. with 2CC
    • UL 2Tx Diversity: 23dBm (@ 3.5GHz), 14dBM (@ 5GHz)
    • UL 2Tx CA: 23dBm (@ 3.5GHz), 14dBM (@ 5GHz)
    • UL 2Tx MIMO: 23dBm (@ 3.5GHz), 14dBM (@ 5GHz)
    • Tx Power Dynamic Range: 63dB
    • Receiver Sensitivity (at 20MHz): -96dBm
    • Channel Bandwidth/Carrier: 5MHz, 10MHz, 15MHz, 20MHz
    • MIMO: DL MIMO 2x2 / 4x4 / 8x4 UL 1x2 (with diversity); UL 1x2 CA; UL 2x2
    • LTE Compliance: 3GPP Release 12
    • PoE: 802.3at
    • Power: Input: Universal range 100V~240V AC, Output: 56V DC
    • Operating Humidity: 5% to 95%
    • Operating Temperature: -40°F to 131°F (-40°C to 55°C)
    • Storage Humidity: 5% to 95%
    • Storage Temperature: -40°F to 158°F (-40°C to 70°C)


    Product Includes:


    (1) BLiNQ FWC-133-3550 CAT12 CPE
