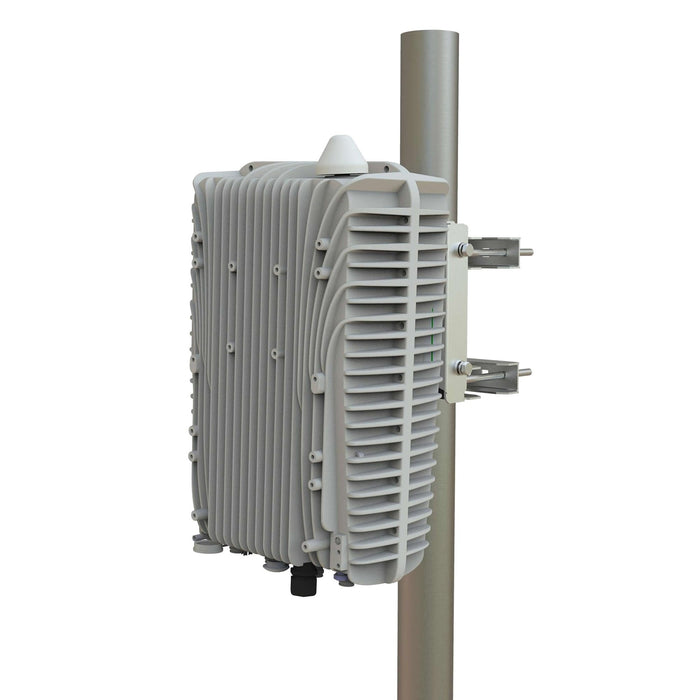

    BLiNQ Networks FW-600 MIMO LTE B41 3-Sector eNodeB FCC CBRS

    FW6-B41-00-WW-K by BLiNQ Networks
    Sold out
    $10,500.00 - $10,500.00
    $10,500.00
    $10,500.00 - $10,500.00
    $10,500.00
    Extend Product Protection

    This powerful base station comes in either a single or dual band architecture and can easily match or out-perform most MIMO commercial solutions. Paired with passive beamforming antenna systems, the FW-600 brings spectral efficiency and capacity to new horizons.


    Product Features:
    • 5G Massive MIMO solution
    • Blasts 18-36 concurrent beams over 360 degrees
    • Delivers interference-free signals when combined with the BLiNQ AAS3F6030-35xx antenna
    • Operates in Bands 42, 43, 48 (CBRS)
    • Works with different carrier aggregations and available in 1CC and 3CC configurations
    • Make your network 5G ready with the FW-600


    Product Specifications
    • Frequency Band: TDD LTE Bands 41
    • Channel Bandwidth: 10, 20 MHz (5 MHz, 15 MHz)
    • MIMO: 6Tx x 6Rx (several possible MIMO configurations)
    • LTE Compliance: 3GPP Release 10 (SW upgrade to Release 13)
    • Survival Wind Speed: >125 mph (FW-600: >200 kph)
    • Operational Temperature: -40 °F to 140 °F (-40 °C to 60 °C)
    • Connected/Active UEs: Up to 576 active users per Base Unit (can be SW upgraded)
    • Throughput DL TDD Config 2-7, 3 x 140 Mbps per sector (3 Beam Antenna), 6 x 140 Mbps per sector (6 Beam Antenna)
    • Throughput UL TDD Config 2-7, 3 x 32 Mbps per sector (3 Beam Antenna), 6 x 32 Mbps per sector (6 Beam Antenna)
    • Operating Mode: TD-LTE supports all standard frame configurations
    • Power Consumption: 480 W
    • Power: 48V DC
    • Connectivity: 1 x Copper 1000BaseT, 1 x SFP, 1 x PPS TNC Connector, 6 x 2.2-5 RF Connectors
    • Synchronization: Integral GPS receiver (GPS, GLONASS, BeiDou), 1588v2
    • Embedded EPC: Software Option
    • Configuration: WebUI / CLI, Radio and Ethernet performance monitoring
    • EMS Integration: SNMP v2c/v3
    • OAM Protocols: Net-configuration, HTTP(S), TCP/IP, UDP, (S)FTP, SSH, TR-069/TR-196


    Product Includes:


    (1) BLiNQ Networks FW-600 B41 Base Station
    (1) User Manual
