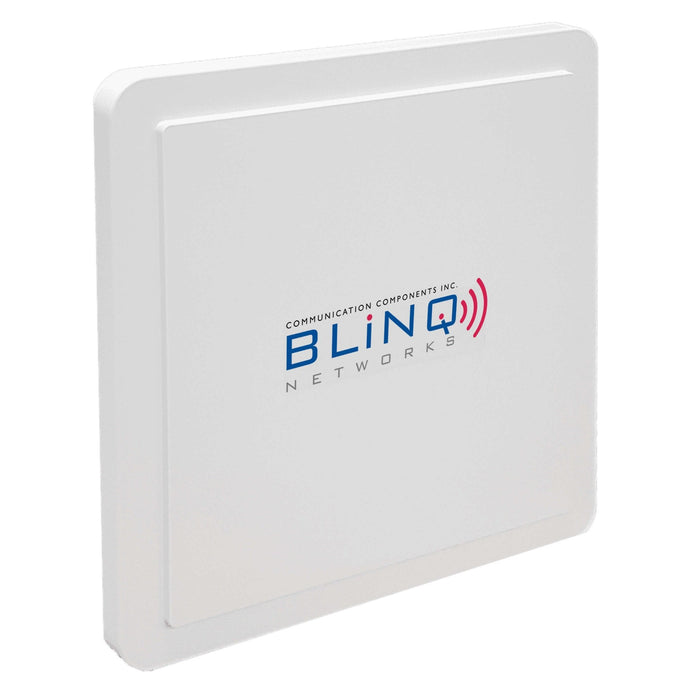

    BLiNQ Networks FW-35-CPE 3.5GHz Outdoor High Gain CPE CAT12 Band 42/43/48

    FWC-122HG-35 by BLiNQ Networks
    Sold out
    $350.00 - $350.00
    $350.00
    $350.00 - $350.00
    $350.00
    Extend Product Protection

    The BLiNQ Networks FWC-122HG-35 CPE is a Category 12 High Gain LTE CPE supporting BLINQ Massive MIMO FW300i/600 Solution.


    Product Features:
    • Supports TDD-LTE Mode Band 42, 43 & 48
    • Supports 3GPP Release 12 compliant
    • Supports up to UE LTE Category 12/13/15 PHY Rate
    • Supports 4x4 MIMO with 40MHz CA
    • Supports DL 256QAM with DL 2x2 MIMO only up to 80MHz CA
    • Supports UL 2Tx (CDD / UL_CA/ UL_MIMO)
    • Supports 1.8V and 3V SIM and USIM card for LTE Mode
    • Supports Dynamic Host Configuration Protocol
    • Built-in web server for web-based configuration
    • Password protected access and configuration
    • Supports IEEE 802.3, IEEE 802.3u, 802.3ab (10/100/1000 Mbps )
    • Supports Power over Ethernet of Outdoor WAN port {802.3 at}
    • Supports VPN pass-through
    • IP67 Environmental Proof


    Product Specifications:
    • Peak Throughput: DL 440 Mbps (Config 2-7); UL 30 Mbps (Config 2-7)
    • Carrier Aggregation: DL 4CC up to 20 MHz each (w. DL 2x2 + 256QAM), DL 2CC up to 20MHz each (w. DL 4x4), UL 2CC or Diversity or TM2 + 64 QAM
    • Frequency Band: TDD LTE Bands 42, 43, 48
    • DL Carrier Aggregation Bandwidth: 80MHz max.
    • UL Carrier Aggregation Bandwidth: 40MHz max. with 2CC
    • Transmit Power: Up to +23 dBm
    • Tx Power Dynamic Range: 63 dBm
    • Receiver Sensitivity: -95 dBm
    • Integrated Antenna Peak Gain: 16 ± 1.0 dBi
    • Channel Bandwidth: 10, 20 MHz
    • MIMO: DL MIMO 2x2 / 4x4 / 8x4, UL 1x2 (with diversity); UL 1x2 CA; UL 2x2
    • LTE Compliance: 3GPP Release 12 (Category 12/13/15 PHY Rate supported)
    • CBRS SAS Support: CBRS Type B Client
    • PoE: 802.3at
    • Power: Tact Switch (Hidden - for repair only)
    • Reset/Reboot Button: -40°F to 140°F (-40°C to 60°C)
    • Survival Wind Speed: 124mph (200km/h)
    • Operating Humidity: 5% to 95%
    • Storage Humidity: 5% to 95%
    • Operational Temperature: -40°F to 131°F (-40°C to 55°C)
    • Storage Temperature: -40°F to 158°F (-40°C to 70°C)
    • MTBF ODU: 300,000 at 131°F (55°C)
    • LTE: EN 301 908-13 V11.1.1
    • Safety: EN/UL 60950-1 & EN/UL 60950-22
    • EMC: EN 301 489-1 / -4 / -17 / -24
    • Environmental: IP67


    Product Includes:


    (1) BLiNQ Networks FW-122HG-35 CPE
    (1) CAT 5 Cable
    (1) PoE Adapter
    (1) Power Cord
    (1) Mounting Bracket
