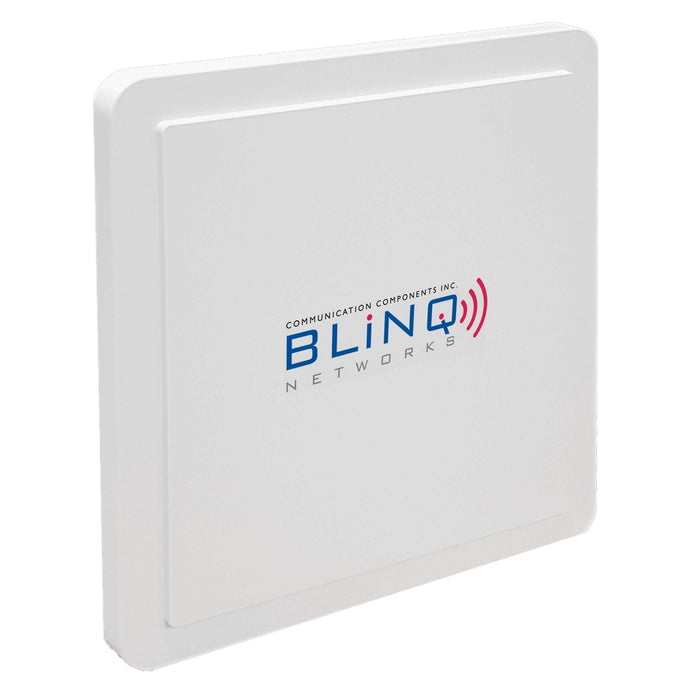

    BLiNQ Networks FW-35-CPE 3.5GHz Outdoor High Gain 20+/-1.0dBi CPE CAT6 LTE MIMO Band 42/43/48

    FWC-110HG-35 by BLiNQ Networks
    Sold out
    $300.00 - $300.00
    $300.00
    $300.00 - $300.00
    $300.00
    Extend Product Protection

    BLiNQ Networks FW-35-CPE 3.5GHz Outdoor High Gain 20+ / -1.0dBi CPE CAT6 LTE MIMO Band 42 / 43 / 48


    Product Specifications:
    • Base Modul: FWC-110HG-35
    • Peak Throughput: 220 Mbps (Config 2-7)
    • Carrier Aggregation: 2CC up to 20 MHz each
    • Frequency Band: TDD LTE Bands 42, 43, 48
    • Transmit Power: Up to +23 dBm
    • Tx Power Dynamic Range: 63 dB
    • Receiver Sensitivity: -93-95 dBm
    • Integrated Antenna Peak Gain: 20 ± 1.0dBi
    • Channel Bandwidth/Carrier: 10, 20MHz
    • MIMO: DL MIMO 2x2 & 4x2
    • LTE Compliance: 3GPP Release 10 & 11
    Mechanical & Regulatory:
    • Dimensions: (L x W x H) 340 (L) 340 (W) 75(H)mm w/o mounting rib
    • PoE: 802.3at
    • Survival Wind Speed: > 200 km/hr
    • Weight: 2 Kg
    • Operating Humidity: 5 to 95
    • Operational Temperature: -40 to 55 °C
    • MTBF ODU: 300,000 at 55 ͦC
    • LTE: EN 301 908-1 V11.1.1 EN 301 908-13 V11.1.1
    • Safety: IEC 60950-1/EN 60950-1
    • EMC: Draft EN 301 489-52 V.1.1.0
    • Environmental: IP67
    Networking & OAM:
    • Ethernet Ports: 802.3, IEEE 802.3u, IEEE 802.3ab
    • SIM Function: 1.8V, 3V SIM and USIM card
    • PIN/PUK Code: Yes
    • Stack: IPv4 , IPv6 , Dual
    • NAT/Dynamic NAT: Yes
    • Router Mode: Yes
    • Bridge Mode: Yes
    • Tunnel Mode: GRE, L2TP, IPsec, PPTP -available per request
    • DHCP Server in LAN: Yes (253 clients)
    • DNS Relay: Yes
    • DDNS Client: Yes
    • VPN Pass-Through – IPSec/PPTP/L2TP: Yes
    • UPNP: Yes
    • HTTP Server: Yes
    • ALG Support (FTP/SIP/…): Yes
    • Networking Debug/Testing IPerf, Ping , Trace-route
    Device Management & Security:
    • WEB: Yes
    • SNMP: Yes
    • TR-069 (TR-0143): Yes (ready for IOT)
    • FOTA Upgrade: Yes (IOT with different network )
    • System Log/Diagnostic: Yes (chip set embedded tool)
    • User Name/Password Configuration: Yes
    • L2/L3 Firewall Basic/Port Forwarding/Port Trigger/DMS / Remote
    • WAN Ping / Remote Web Access Control
    Product Includes:


    (1) BLiNQ Networks FW-35-CPE
    (1) PoE Adapter
    (1) Power Cord
    (1) Mounting Bracket
    (1) CAT 5 Cable
