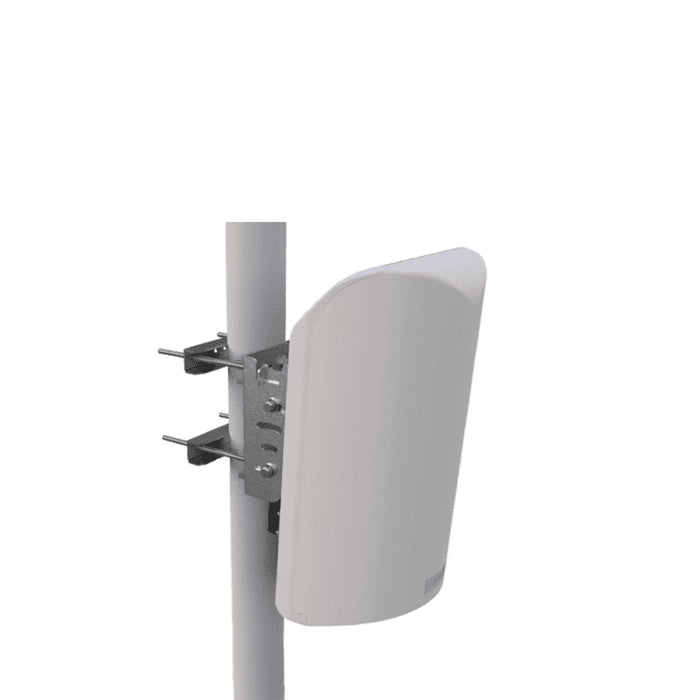

    BLiNQ Networks FW-300i High Powered Dual-band B46 B48 1-Sector Integrated Antenna eNodeB

    FW3-B48-46-HP-NA-K by BLiNQ Networks
    Sold out
    $7,500.00 - $7,500.00
    $7,500.00
    $7,500.00 - $7,500.00
    $7,500.00
    Extend Product Protection

    Power supply not included. Can be powered with the FW3-AC-PWR.


    The BLiNQ Networks High Powered FW-300i is a single piece of hardware that is easy to set up, fits anywhere, and provides incredible network capacity. This simple solution fits almost anywhere. From the side of a building or water tower and is ready to go immediately, giving 3x the capacity at 1/3rd the price. Provide incredible connectivity using this single box solution.


    Product Features:
    • ‘All-In-One’ Fully Integrated Solution
    • Features Self Channel Assignment
    • Supports Uplink* and Downlink Carrier Aggregation
    • CBRS Category B Certified
    • Supports all LTE TDD Configurations
    • 60° Azimuth Coverage
    • Features Standard 2×2 MIMO Configurations
    • Supports 256 QAM* downlink and 64 QAM Uplink
    • Network Management: WebUI, CLI and EMS


    Radio Specifications:
    • Transmit Power (B48):
    • 10MHz: 30dBm /antenna port (1CC), 30dBm /antenna port (2CC)
    • 20MHz: 33dBm /antenna port (1CC), 30dBm /antenna port (2CC)
    • Transmit Power (B46):
    • 10MHz: CC Compliant: 13dBm /antenna port, Max. Transmit Pout: 23dBm /antenna port
    • 20MHz: FCC Compliant: 16dBm /antenna port, Max. Transmit Pout: 23dBm /antenna port
    • EIRP (Per carrier) B48:
    • 10MHz: 47dBm EIRP/antenna port (1CC), 47dBm EIRP/antenna port (2CC)
    • 20MHz: 50dBm EIRP/antenna port (1CC), 47dBm EIRP/antenna port (2CC)
    • EIRP (Per carrier) B48: 10MHz: 33dBm EIRP/sector (aggregate power per MIMO)
    • 20MHz: 36dBm EIRP/sector (aggregate power per MIMO)
    • Channel Bandwidth: 3 x 10MHz or 3 x 20MHz
    • MIMO: 2TX x 2RX (several possible MIMO configurations)
    • LTE Compliance: 3GPP Release 10 (SW upgrade to Release 13)
    • Connected/Active User Equipment (UE): Up to 96 active users per sector
    • Carrier Aggregation: Supports contiguous and non-contiguous 1CC, 2CC, 3CC Covers full CBRS band (150MHz)
    • Throughput DL TDD Config 2-7: 110Mbps per 1CC (140Mbps *) 330Mbps per base unit (420Mbps *)
    • Throughput UL TDD Config 2-7: 11Mbps per 1CC 33Mbps per base unit (3 x 1 CC)
    • Operating Mode: TD-LTE
    • Power Consumption: 180W maximum
    • Power: 48 VDC
    • Connectivity: Default: 1 x Copper 1000BaseT; Optional: 1 x SFP
    • Synchronization: Integral GPS antenna (GPS, GLONASS, BeiDou), Optional: External GPS, 1588v2
    • Citizens Broadband Radio Service (CBRS): CBSD Category B Certified
    • Embedded Evolved Packet Core (EPC): Software Option
    • Configuration: WebUI, CLI and EMS
    • EMS Integration: RESTCONF
    • OAM Protocols: RESTCONF, HTTPS, SSH, SNMPv2c
    • Survival Wind Speed: Up to 124 mph (200 kph)
    • Operational Temperature: -40°F to 140°F (-40°C to 60°C)
    • Mechanical Uptilt/Downtilt: 0° - 10°


    Antenna Specifications:
    • Gain: 17 dBi
    • Azimuth Coverage (-5dB): 180°
    • Azimuth Beamwidth (-3dB): 45°
    • Azimuth Beamwidth (-5dB): 60°
    • Elevation Beamwidth (-3dB): 10°
    • Electrical Downtilt: 0°
    • Azimuth Sidelobe: < -25dB (Typ.)
    • Front-to-Back Ratio @180°: > 30dB (Typ.)
    • Co-Polar Port-to-Port Isolation: 15dB (Typ.)
    • Cross-Polarization Port-to-Port Isolation: > 20dB (Typ.)
    • Max. Voltage Standing Wave Ratio (VSWR): 1.5:1
    • Polarization: Dual Pol 45°
    • Lightning Protection: DC Ground


    Product Includes:


    (1) BLiNQ Networks FW-300i Base Unit
    (1) Mounting Bracket
    (1) Mounting Assembly
    (8) Washers 1/4in
    (8) Socket Head Cap Screws 1/4in.-20, 5/8in.L
    (4) Washers 3/8in
    (4) Hex Nuts 3/8in. -16
    (1) User Manual
