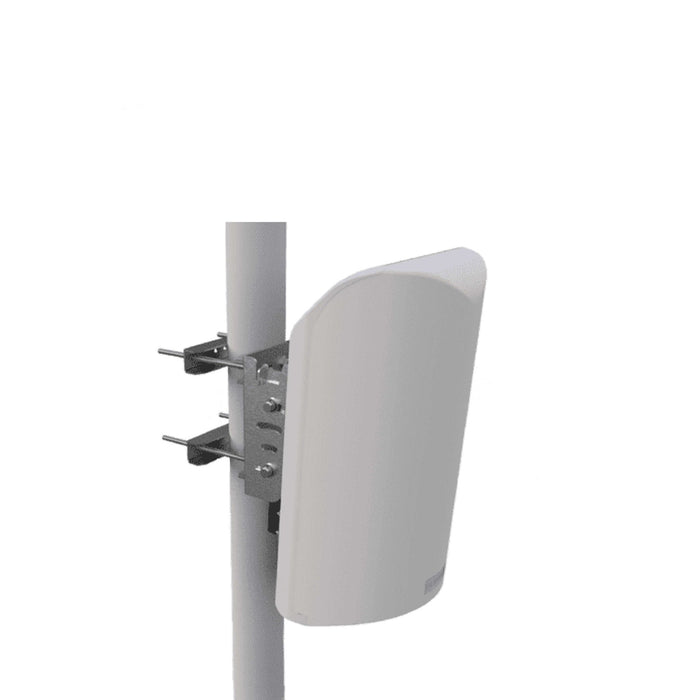

    BLiNQ Networks FW-300i 3.5GHz LTE CBRS Base Unit Antenna 17dBi Bands 48 (without embedded EPC)

    FW3-B48-00-NA-K by BLiNQ Networks
    Sold out
    $7,000.00 - $7,000.00
    $7,000.00
    $7,000.00 - $7,000.00
    $7,000.00
    Extend Product Protection

    BLiNQ Networks FW-300i 3.5GHz LTE CBRS Base Unit Antenna 17dBi Bands 48 (without embedded EPC) is a single piece of hardware that is easy to set up, fits anywhere, and provides incredible network capacity. This simple solution fits almost anywhere. From the side of a building or water tower and is ready to go immediately, giving 3x the capacity at 1/3rd the price. Provide incredible connectivity using this single box solution (without embedded EPC).


    Product Features:
    • Brings massive capacity and standard LTE together
    • Lowers installation time and operational cost by up to 6x
    • Works with any LTE CPE on the market
    • Integrated antennas are built-in for a "cell-in-a-box" solution
    • Outperforms competitors in a frequency-2 reuse scenario
    • Delivers the best cost per gigabit air capacity in the industry


    Product Specifications:
    • Frequency Band: TDD LTE Bands 48
    • Transmit Power (Bands 42, 43) *: Max 33 dBm / sector of 60deg, 17 dBi Integrated Antenna > 50 dBm EIRP/Sector
    • Channel Bandwidth: 10, 20MHz (15 MHz Road-map Support)
    • MIMO: 6Tx x 6Rx (several possible MIMO configurations)
    • LTE Compliance: 3GPP Release 10 (SW upgrade up to Release 13)
    • Connected/Active UEs: Up to 96 active users per sector. 288 active users per Box
    • Carrier Aggregation: Supports contiguous and non-contiguous 1CC, 2CC, 3CC, over entire band
    • Throughput DL TDD: 3GPP Release 10 (SW upgrade to Release 13)
    • Throughput UL TDD: 3GPP Release 10 (SW upgrade to Release 13)
    • Operating Mode: TD-LTE
    • Power: Consumption (Band 46) 80W max.
    • Power: Consumption (Band 42,43,48) 150W max.
    • Power: 48V DC
    • Connectivity: Default: 1 x Copper 1000BaseT & 1 x SFP
    • Synchronization Integral GPS receiver (GPS GLONASS BeiDou), Extra PPS Port,
    • Optional: External GPS, 1588v2
    • CBRS: CBSD Type B SAS Support, Integrated Domain Proxy SAS
    • Embedded EPC: Software Option
    • Configuration: WebUI / CLI, Radio and Ethernet performance monitoring
    • EMS Integration: SNMP v2c/v3
    • OAM Protocols: NetConf, HTTP(S), TCP/IP, UDP, (S)FTP, SSH, TR-069/TR-196
    • Gain: 17dBi
    • Azimuth coverage (-5dB): 180°
    • Azimuth Beam-width (-3dB): 45°
    • Azimuth Beam-width (-5dB): 60°
    • Elevation Beam-width (- 3dB): 10°
    • Electrical Down-tilt: 0°
    • Azimuth Side-lobe < -25 dB (Typ.)
    • Front-to-Back Ratio @180° > 30 dB (Typ.)
    • Co-Polar Port-to-Port Isolation 15 dB (Typ.)
    • Cross-Polarization Port-to- Port Isolation: > 20dB (Typ.)
    • Max. VSWR: 1.5:1
    • Polarization: Dual Pol 45°
    • Lightning Protection: DC Ground
    • Dimensions (LxWxD): 350x570x227 mm (13.78”x22.4”x8.9”)
    • Survival Wind Speed: > 200 km/hr
    • Weight: 12.0 kg (26.45 lb)
    • Operational Temperature: -40° to 60°C (-40°F to 140°F)
    • Mechanical Up/Down Tilt: 0°, 5°, 10°


    Product Includes:


    (1) BLiNQ Networks FW-300i Base Unit
    (1) Mounting Bracket
    (1) Mounting Assembly
    (8) Washers 1/4in
    (8) Socket Head Cap Screws 1/4in.-20, 5/8in.L
    (4) Washers 3/8in
    (4) Hex Nuts 3/8in. -16
    (1) User Manual
