    BLiNQ Networks FW-25 Band 41 CAT12 2.5GHz Outdoor Standard Gain CPE - BLiNQ Networks - (Dev) Baltic Networks

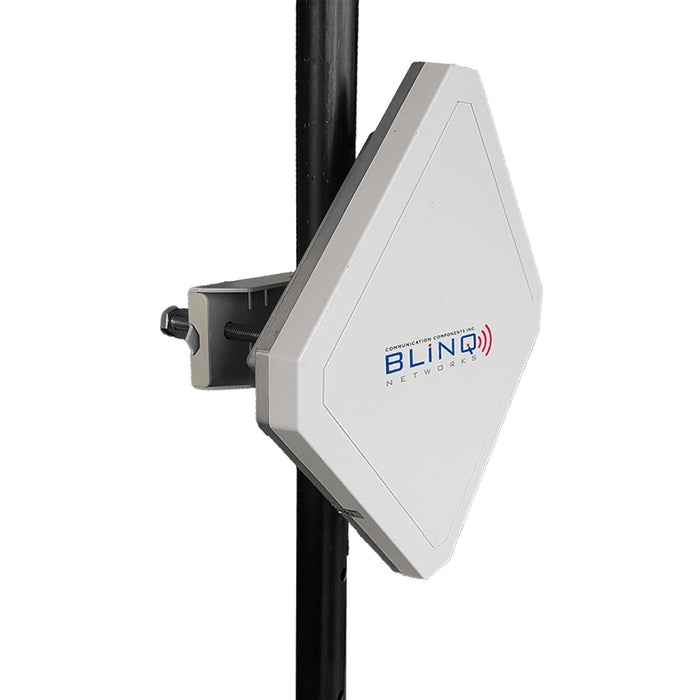

    BLiNQ Networks FW-25 Band 41 CAT12 2.5GHz Outdoor Standard Gain CPE

    FWC-122-25 by BLiNQ Networks
    Sold out
    $300.00 - $300.00
    $300.00
    $300.00 - $300.00
    $300.00
    Extend Product Protection

    Supporting up to 80 MHz bandwidth with carrier aggregation and 256 QAM modulation in downlink, the BLiNQ Networks FWC-122-25 CPE provides a high capacity solution to meet the connectivity needs of a wide variety of users. Its rugged housing, installation bracket and high IP67 rating also provides peace of mind for deployments in all kinds of tough outdoor environments.


    Product Features:
    • Supports TDD-LTE Band 41
    • 3GPP Release 12 Compliant
    • Supports up to UE LTE Downlink Category 12/ Uplink Category 13 PHY Rate
    • Supports 4x4 MIMO with 40 MHz CA Maximum and DL 2x2 MIMO up to 80 MHz CA
    • Supports DL 256QAM with DL 2x2 MIMO only (Contiguous and Non-Contiguous Bandwidth)
    • Supports UL 2Tx (CDD / UL_CA/ UL_MIMO)
    • Physical 2Tx & 4Rx in RF Front End
    • Supports 1.8V and 3V SIM and USIM Card for LTE Mode
    • Supports Dynamic Host Configuration Protocol
    • Built-in Web Server for Web-Based Configuration
    • Password Protected Access and Configuration
    • Supports IEEE 802.3, IEEE 802.3u, 802.3ab (10/100/1000 Mbps )
    • Supports 802.3at POE standard - Available on outdoor rated WAN port
    • Supports NAT/Tunnel/Bridge/Router Mode
    • Supports VPN Pass-Through
    • IP67 Environmental Rating


    Product Specifications:
    • PoE: 802.3at
    • Power Input: Universal range 100~240V AC ; Output: 56 VDC
    • Reset/Reboot Button: Tactile Switch (inside box)
    • Operating Humidity: 5% to 95%
    • Storage Humidity 5% to 95%
    • Operational Temperature: -40°F to 131°F (-40°C to 55°C)
    • Storage Temperature: -40°F to 158°F (-40°C to 70°C)
    • FCC: FCC Certified
    • Safety: IEC 60950-22:2016, IEC 62368-1:2014 compliant
    • RF Exposure: Meets 47 CFR FCC Part 2.1091


    Product Includes:


    (1) BLiNQ Networks FW-122HG-25 CPE

    (1) CAT 5 Cable

    (1) PoE Adapter

    (1) Power Cord

    (1) Mounting Bracket
