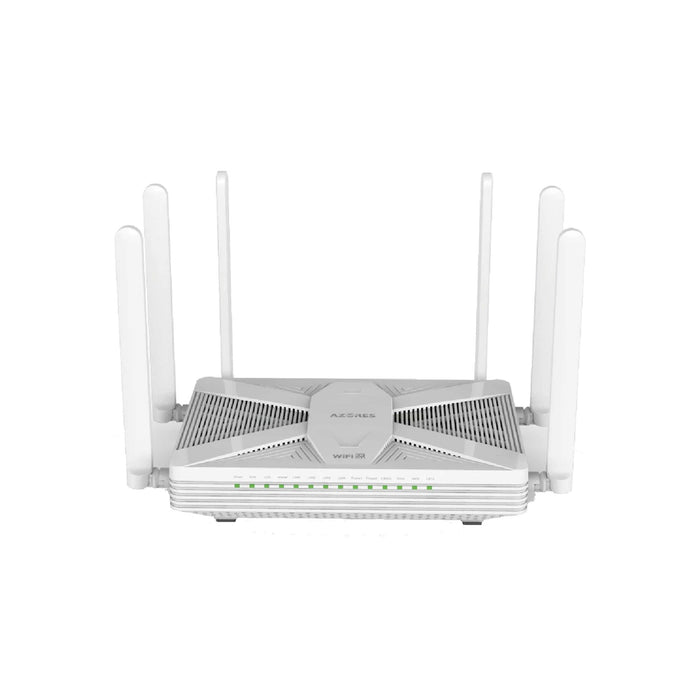

    Azores WAG XGS/GPON Gateway

    WAG-8F2W6-XS by Azores
    $227.95 - $227.95
    $227.95
    $227.95 - $227.95
    $227.95
    Extend Product Protection

    The WAG-8F2W6-XS is an ITU-T G.984 and ITU-T G.988 compliant ONT. The ONT provides four GE ports, two POTS ports, Wi-Fi 802.11ax 2x2@2.4GHz & 802.11ax 4x4 @5GHzconcurrent, one RF interface, can efficiently deliver data services, video and voice services. Its characteristics of high bandwidth and low delay can meet the needs of high-end home users and supports desktop mounting or wall mounting.


    Product Features:

    • 1*SC/APC optical interface for fiber connection.
    •  4*GE Ethernet interface with RJ-45 connector, Supports 10/100/1000-Base-T,half/full duplex and flow control, auto negotiation or manual configuration and supports MDI/MDIX auto-sensing
    • 2*POTS interfaces with RJ-11 connector
    • 12V Power Input Interface1* DC Jack for power input
    •   6*external antenna

    Product Specifications:

    • Dimensions (Height×Width×Depth): 8.6" x 6.3" x 2.2" (220mm×160mm×55mm)
    • Rated Voltage: 12V
    • Rated Current: 2A
    • Operation Temperature: 32ºF to 104ºF 0ºC to 40ºC
    • Storage Temperature: -4ºF to 149ºF -20ºC to 65ºC

    Product includes:


    (1) WAG-8F2W6-XSONT Unit

    (1) Power Adapter

    (1) RJ-45 Ethernet Cable

    (1) User Manual
