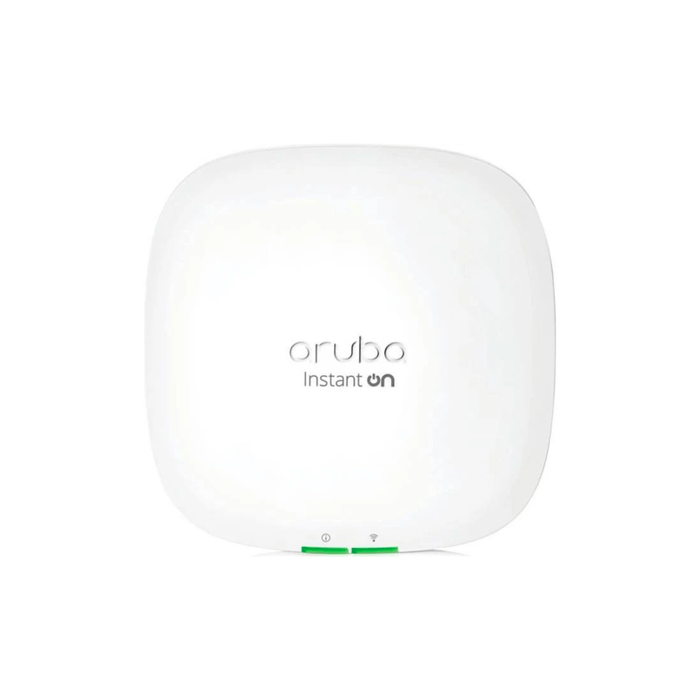

Aruba Instant On AP22 2x2 Wi-Fi 6 Indoor Access Point

Aruba Instant On AP22 Indoor Access Points deliver affordable, business-grade 802.11ax Wi-Fi for high performance, high density small business environments. Business-grade capabilities are designed to meet the growing number of mobile, IoT, and security needs.

The compact form factor of the Aruba Instant On AP22 Indoor Access Points (AP) delivers multi-user capabilities and a maximum aggregate peak data rate of 1.2 Gbps for high-definition video streaming and cloud application requirements. Everything from mounting hardware to easy-to-use web and mobile app management tools, and business-grade software features are included – no extra charge or need for external controllers.

• Aruba Instant On AP22 Indoor Access Points include an easy-to-use web GUI and templates – access points are simple to deploy and are up and running in minutes.
• Aruba Instant On AP22 Indoor Access Points support the Wi-Fi 6 standard, including features such as orthogonal frequency-division multiple access (OFDMA) and bi-directional Multi-User MIMO (MU-MIMO).
• Aruba Instant On AP22 Indoor Access Points support features Target Wake Time (TWT) that help establish a schedule when clients need to communicate with an AP.
• Create up to eight different SSIDs under one network name to keep your data safe, whether surfing the web or checking HR data.

• Product Number: R4W01A
• Differentiator: Aruba Instant On AP22 Indoor Access Points offer a reliable, affordable, and business-grade 802.11ax Wi-Fi experience for high performance, high-density small business environments like hotels, restaurants, and professional offices. Supporting Wi-Fi 6 standard, these access points have a peak data rate of 1.2 Gbps and scale up to 25 access points, without additional cost and complexity. Regulatory domain of US.
• Certifications: EN 60601-1-1 and EN 60601-1-2 (for deployment in medical environments) Wi-Fi Alliance certified (WFA) 802.11ax with (Wi-Fi 6), WPA2, WPA3 Input voltage: Power over Ethernet

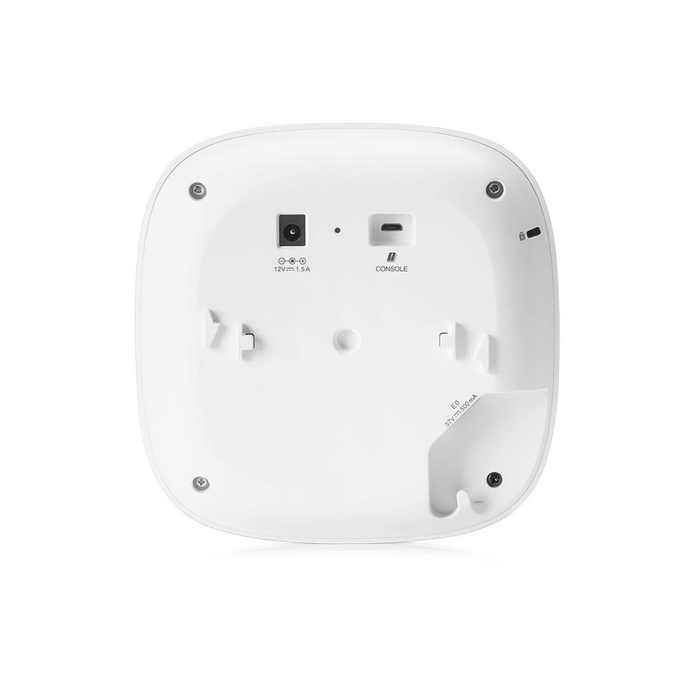

• (POE): 802.3af (class 3) DC power (12V)
• Wi-Fi antenna: Integrated down-tilt omni-directional antennas for 2x2 MIMO with peak antenna gain of 4.3dBi in 2.4GHz and 5.6dBi in 5GHz (of the effective, combined pattern for both antennas in each band). Connectivity, standard: IEEE 802.11ax

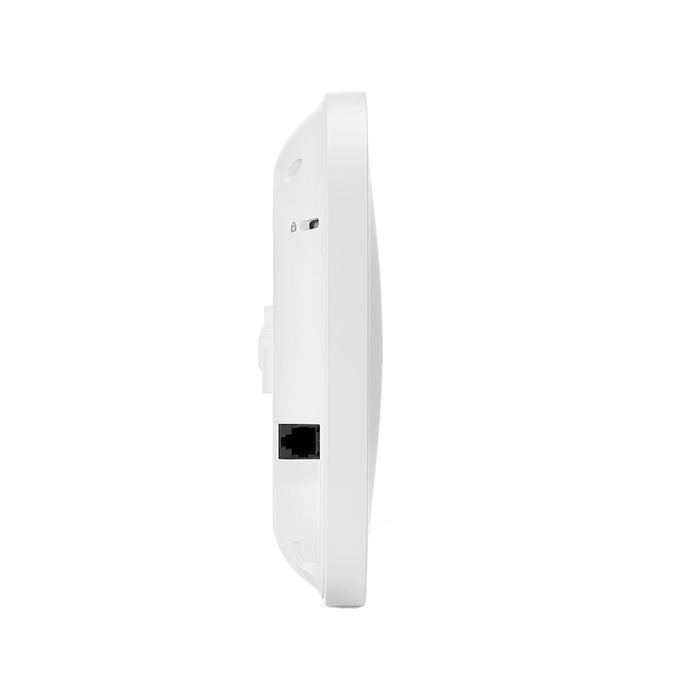

• Ports: (1) uplink Gigabit Ethernet port, with POE-in support (802.3af)
• Mounting: The access point ships with a white mount clip that can attach to both wall and ceiling. You can also purchase a mount (R6P90A) that matches the aesthetic design and looks of the APs, to blend seamlessly into your environment.
• Power Consumption: Max power consumption (worst-case): 10.1W (PoE), 8.8W (DC)
• Radio coverage: Dual Radio for simultaneous dual-band operation 5 GHz 802.11ax 2x2 MIMO for up to 1.2 Gbps wireless data rate, with Multi User MIMO support (WiFi 6) 2.4 GHz 802.11ax 2x2 MIMO for up to 574 Mbps wireless data rate (Wi-Fi 6)
