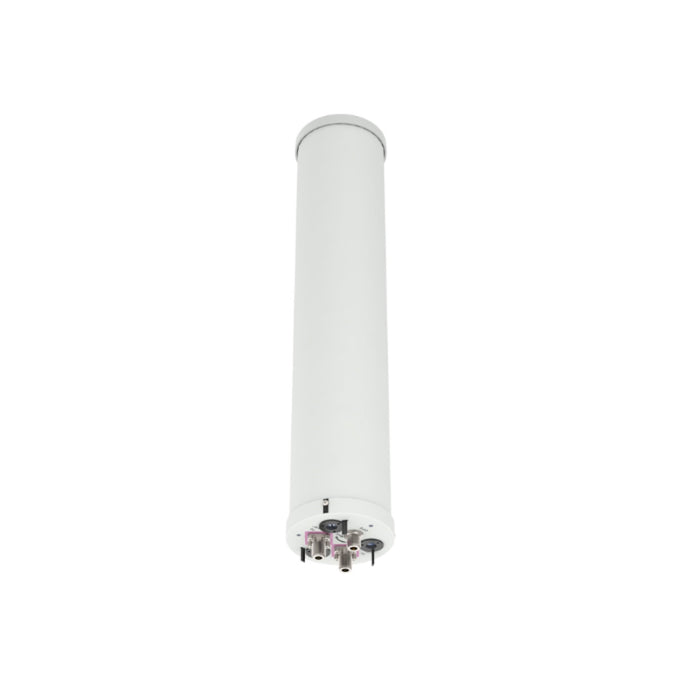

Alpha Wireless 3.3 - 3.8GHz 8.5dBi Omni CBRS Antenna w/ Integrated GPS

AW3625 is an Alpha Wireless linear-slant omnidirectional CBRS antenna, operating between 3300 and 3800MHz, with a ±45° polarization, 8.5dBi gain, and a GPS antenna.

• Frequency Range: 3300 - 3800MHz
• Polarization: ±45° Slant Linear
• Gain: 8.5dBi
• Azimuth Beamwidth: 360°
• Elevation Beamwidth: 12°
• Electrical Downtilt: T0° to T10°
• Electrical Downtilt Deviation: <1°
• Impedance: 50Ω
• VSWR: <1.5:1
• Return Loss: >14dB
• Isolation: >25dB
• Upper Sidelobe Suppression, Peak to 20°: >16dB
• Cross Polar Discrimination at Sector: >12dB
• Maximum Effective Power per Port: 50W

• Dimensions: 640 x 120 x 120mm (25.2 x 4.7 x 4.7")
• Dimensions (inc. bracket): 1150 x 178 x 120mm (45.3 x 7.0 x 4.7)
• Packing Size: 770 x 190 x 250mm (30.3 x 7.4 x 9.8")
• Net Weight (antenna): 3kg (6.6lbs)
• Net Weight (mount): 2kg (4.4lbs)
• Shipping Weight: 6kg (13.2lbs)
• Connector Quantity: (2) N-Type Female, (1) N-Type for GPS
• Connector Position: Bottom
• Mounting Kit: CL-V-126
• Win load Frontal: 150N
• Survival Wind Speed: 200kmh (125mph)
• Radome Material: UV-Stabilized PVC
• Radome Color: 7035 RAL
• Product Environmental Compliance: RoHS
• Lighting Protection: DC Grounded
• Cold Temperature Survival: -40°C
• Hot Temperature Survival: 70°C

• Center Frequency: 1575.42MHz ± 10MHz
• Gain: 3dBic @ 90° / -2dBic @ 20°
• Polarization: Right Hand Circular
• Current Draw: 7.5mA @ 3.3VDC (typical)
• Nominal Impedance: 50Ω
• VSWR: 1.5:1 (typical) @ 5.0V / 1.8:1 (typical) @ 3.3V
• Nominal Gain: @ 3.3VDC: 25dB / @ 5VDC: 25.5dB
• Voltage: -5VDC
• Connector (1) N-Type
• Temperature Range: -40 to 85°C
• Humidity: 95% max
